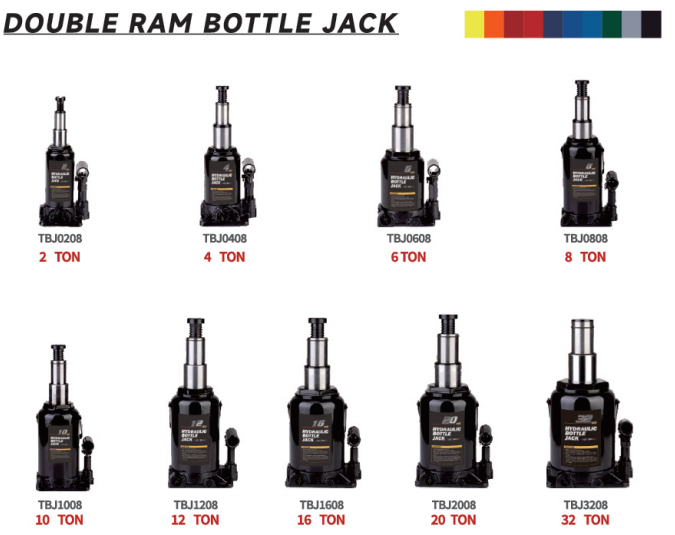

DOUBLE RAM BOTTLE JACK
DOUBLE RAM BOTTLE JACK
| Model | Capacity | Min.H | Lifting 1 | Lifting 2 | Adjust H | N.W | Qty/Ctn | Package Size |
| ton | mm | mm | mm | mm | kg | pcs | cm | |
| TBJ0208 | 2 | 166 | 90 | 90 | 55 | 2.7 | 5 | 60x14.5x20 |
| TBJ0408 | 4 | 153 | 80 | 70 | 35 | 3.8 | 5 | 65.5x14x22 |
| TBJ0608 | 6 | 156 | 80 | 70 | 40 | 5.2 | 4 | 60x16x20 |
| TBJ0808 | 8 | 158 | 80 | 60 | 40 | 6.1 | 4 | 60x16x20 |
| TBJ1008 | 10 | 227 | 130 | 135 | 50 | 8.6 | 2 | 32.5x17.5x27 |
| TBJ1208 | 12 | 227 | 125 | 130 | 50 | 9.8 | 2 | 34x19.5x27 |
| TBJ1608 | 16 | 233 | 140 | 130 | 50 | 11.2 | 2 | 35.5x19.5x27 |
| TBJ2008 | 20 | 233 | 145 | 125 | 50 | 13 | 1 | 20x19x25 |
| TBJ3208 | 32 | 252 | 140 | 140 | / | 17 | 1 | 23x21x26 |
