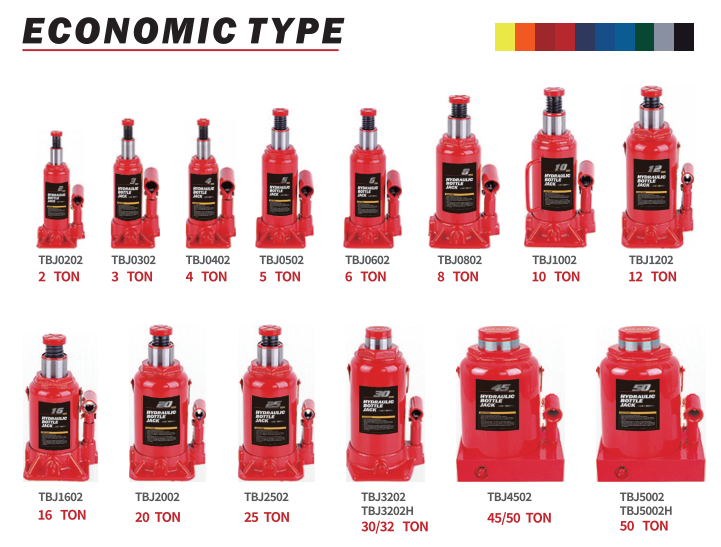

ECONOMIC TYPE
ECONOMIC TYPE
| Model | Capacity | Min.H | Lifting H | Adjust H | Max H | N.W | Qty/Ctn | Package Size |
| ton | mm | mm | mm | mm | kg | pcs | cm | |
| TBJ0202 | 2 | 148 | 80 | 50 | 278 | 2 | 10 | 49.5x23.5x17 |
| TBJ0302 | 3 | 158 | 90 | 50 | 298 | 2.2 | 10 | 49.5x23.5x18 |
| TBJ0402 | 4 | 170 | 100 | 60 | 330 | 2.5 | 5 | 57x13x20 |
| TBJ0502 | 5 | 180 | 110 | 60 | 350 | 3.1 | 5 | 57x13x20 |
| TBJ0602 | 6 | 195 | 125 | 60 | 380 | 3.5 | 5 | 62x14x22 |
| TBJ0802 | 8 | 200 | 125 | 60 | 385 | 4.2 | 5 | 62x14x22 |
| TBJ1002 | 10 | 200 | 125 | 60 | 385 | 4.7 | 5 | 64.5x14.5x22 |
| TBJ1202 | 12 | 200 | 125 | 60 | 385 | 5.9 | 4 | 54x15x22 |
| TBJ1602 | 16 | 210 | 135 | 60 | 405 | 6.3 | 2 | 30x16x22.5 |
| TBJ2002 | 20 | 235 | 145 | 60 | 440 | 8.2 | 2 | 34x18x25 |
| TBJ2502 | 25 | 255 | 145 | 60 | 460 | 10 | 2 | 38x18.5x27 |
| TBJ3202 | 30/32 | 255 | 155 | / | 410 | 11.5 | 2 | 38x19x27 |
| TBJ3202H | 30/32 | 285 | 180 | / | 465 | 12.5 | 2 | 38x19x30 |
| TBJ4502 | 45/50 | 255 | 155 | / | 410 | 16.8 | 1 | 21x18x27 |
| TBJ5002 | 50 | 255 | 155 | / | 410 | 18.2 | 1 | 21x18x30 |
