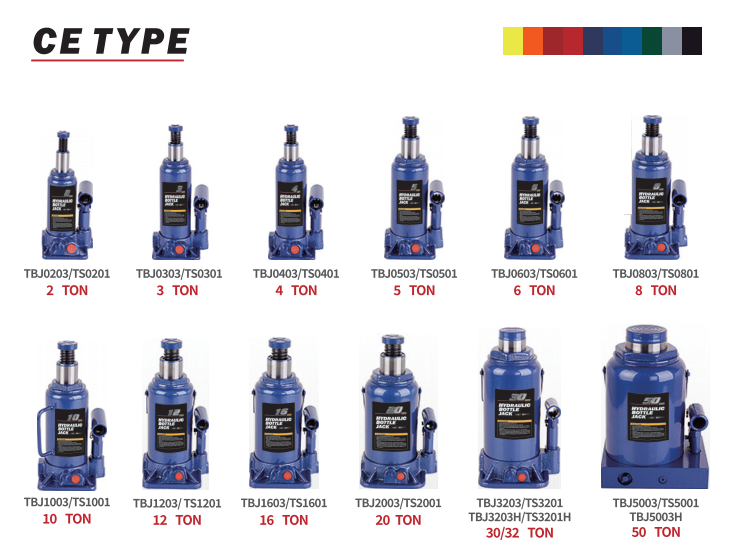

CE TYPE
CE TYPE
| Model | Capacity | Min.H | Lifting H | Adjust H | Max H | N.W | Qty/Ctn | Package Size |
| ton | mm | mm | mm | mm | kg | pcs | cm | |
| TBJ0203/TS0201 | 2 | 148 | 80 | 50 | 278 | 2.3 | 10 | 57x21x19 |
| TBJ0303/TS0301 | 3 | 158 | 90 | 60 | 308 | 2.5 | 5 | 59.5x13x21 |
| TBJ0403/TS0401 | 4 | 180 | 110 | 60 | 350 | 3.2 | 5 | 59.5x13x21 |
| TBJ0503/TS0501 | 5 | 195 | 125 | 60 | 380 | 3.5 | 5 | 64.5x14x23 |
| TBJ0603/TS0601 | 6 | 200 | 125 | 60 | 385 | 4.2 | 5 | 64.5x14x23 |
| TBJ0803/TS0801 | 8 | 200 | 125 | 60 | 385 | 4.8 | 4 | 54x14.5x23 |
| TBJ1003/TS1001 | 10 | 200 | 125 | 60 | 385 | 5.4 | 4 | 56x15x23 |
| TBJ1203/TS1201 | 12 | 210 | 135 | 60 | 405 | 6.5 | 4 | 60x16x24 |
| TBJ1603/TS1601 | 16 | 225 | 140 | 60 | 425 | 7.5 | 2 | 33x17x26 |
| TBJ2003/TS2001 | 20 | 235 | 145 | 60 | 440 | 9.8 | 2 | 37x18x27 |
| TBJ3203/TS3201 | 30/32 | 255 | 150 | / | 405 | 12.5 | 2 | 38x20x28 |
| TBJ3203H/TS3201H | 30/32 | 255 | 150 | 60 | 465 | 13.5 | 2 | 38x20x28 |
| TBJ5003/TS5001 | 50 | 255 | 155 | / | 410 | 19 | 1 | 20.5x20x28 |
| TBJ5003H | 50 | 300 | 180 | / | 480 | 29.5 | 1 | 24x22.5x33 |
