SHOP PRESS
SHOP PRESS

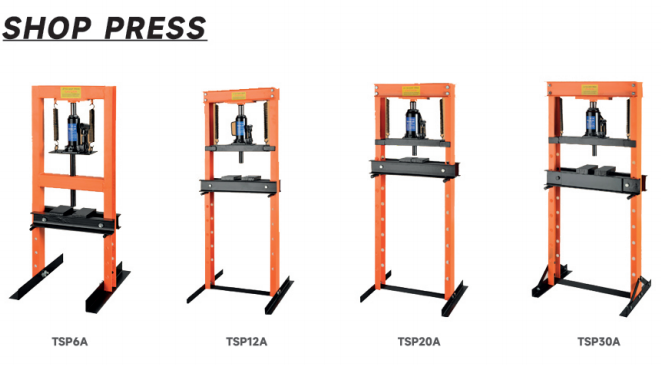

| Model | Capacity(ton) | Stroke(mm) | Max working distance(mm) | N.W(kg) | G.W(kg) | Packge size(cm) | 20FCL /PCS |
| TSP6A | 6 | 110 | 270 | 32 | 34 | 97×42×12 | 550 |
| TSP12A | 12 | 130 | 720 | 43 | 45 | A58×23×19 B126×20×9 | 550 |
| TSP20A | 20 | 150 | 910 | 80 | 82 | A83×24×28 B160×15×15 | 300 |
| TSP30A | 30 | 160 | 960 | 109 | 125 | 165×35×30 | 200 |

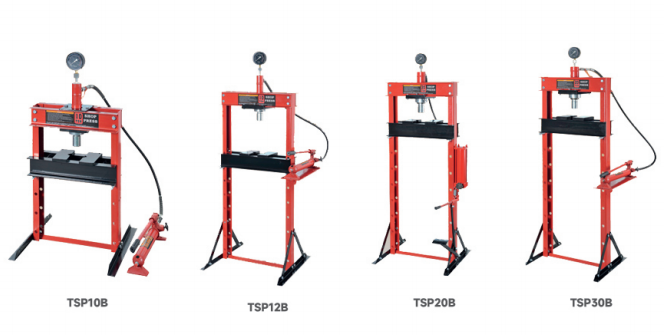

| Model | Capacity(ton) | Stroke(mm) | Max working distance(mm) | N.W(kg) | G.W(kg) | Packge size(cm) | 20FCL /PCS |
| TSP10B | 10 | 175 | 358 | 51 | 53 | 800×260×205 | 300 |
| TSP12B | 12 | 135 | 858 | 70 | 72 | 1350×260×200 | 250 |
| TSP20B | 20 | 145 | 1035 | 90 | 92 | A1620×250×110 B700×265×240 | 210 |
| TSP30B | 30 | 150 | 820 | 150 | 150 | 1750×380×270 | 120 |

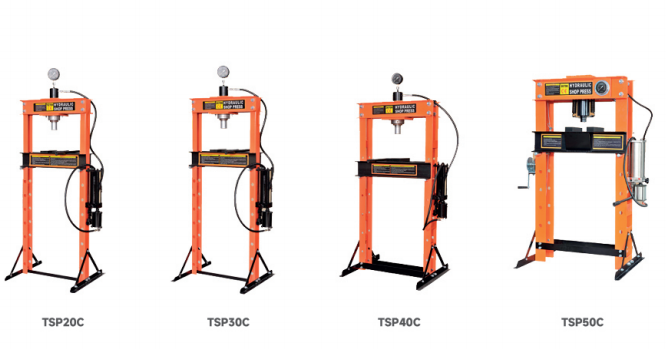

| Model | Capacity(ton) | Stroke(mm) | Max working distance(mm) | N.W(kg) | G.W(kg) | Packge size(cm) | 20FCL /PCS |
| TSP20C | 20 | 120 | 970 | 85 | 93 | 1560×220×250 | 190 |
| TSP30C | 30 | 160 | 950 | 122 | 136 | 1660×280×320 | 130 |
| TSP40C | 40 | 200 | 850 | 195 | 220 | 900×350×1850 | 48 |
| TSP50C | 50 | 200 | 690 | 219 | 249 | 1680×920×430 | 42 |
